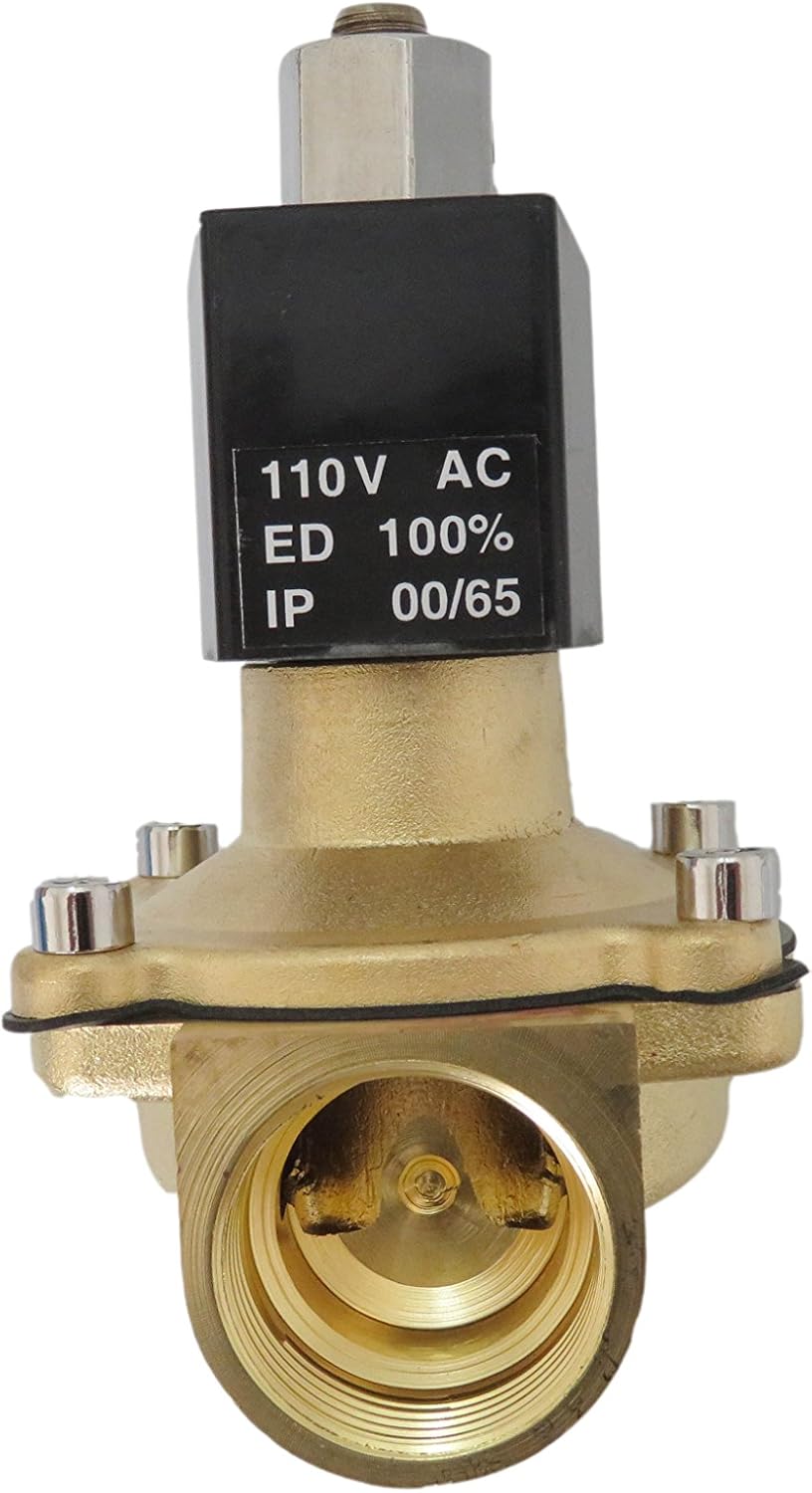

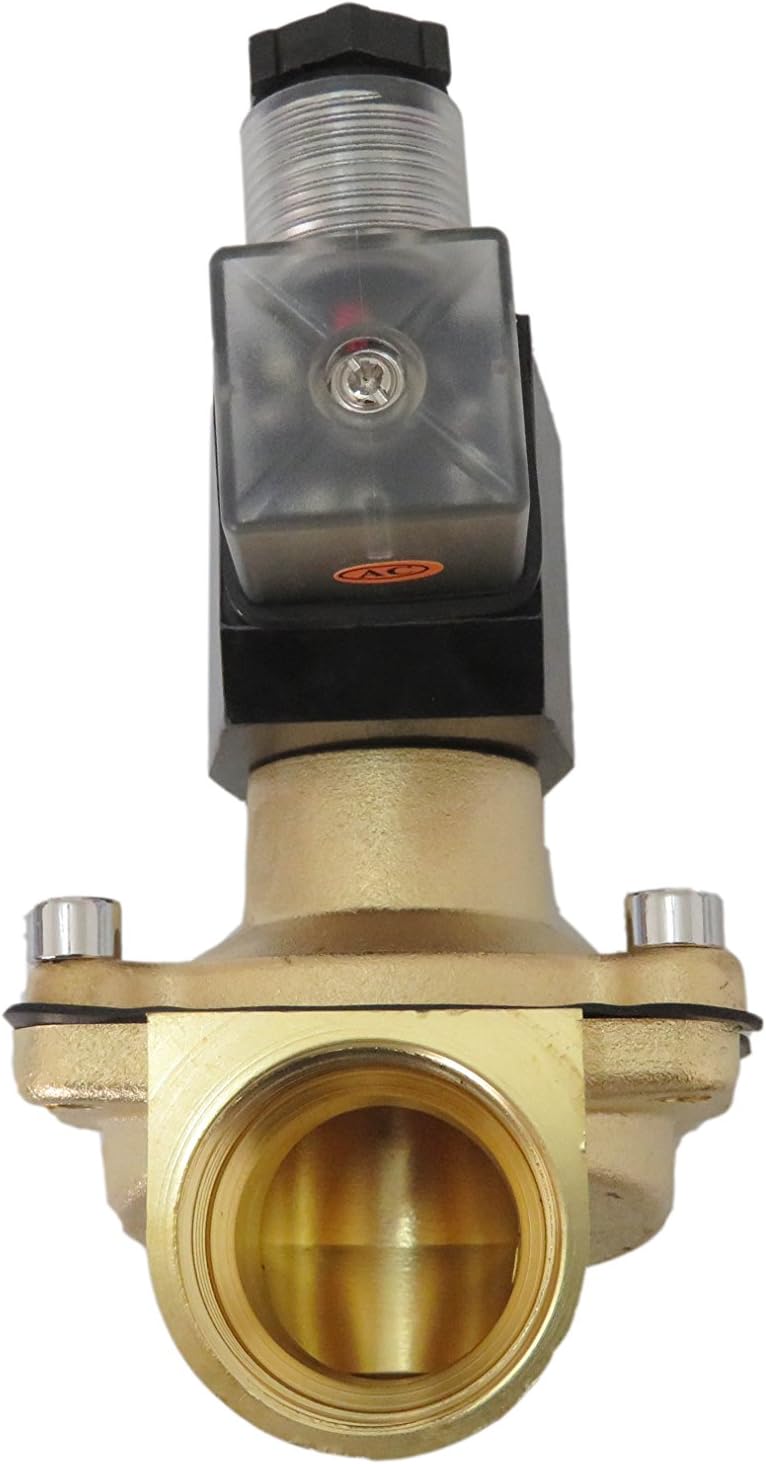

1 inch Normally Open 110V 120V AC VAC Brass Solenoid Valve NPT
4.2 (119 items)
Limited Time SaleUS$33.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 221431525 | Release Date | 2026/05/03 | List Price | US$22.40 | Model Number | 221431525 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Body: Brass Diaphragm: NBR (fiber-reinforced) Insert: Stainless steel (plunger, spring, etc.) Seal: NBR (aka Buna-N, Perbunan, and nitrile rubber) ★ELECTRICAL - Coil: Copper wire in resin-molded casing Voltage: 110-120 VAC Wattage: 24 Watt Current: 0.2 Amp ★MECHANICAL - Flow Rate: Cv = 12 Pipe Size: 1" NPT female (11-1/2 TPI) Operation Type: 2-way 2-position direct lift diaphragm Flow Direction: Unidirectional (follow the arrow on valve body) Operation Mode: Normally open (valve closes when coil is energized) Media: Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (Do NOT use with gasoline)
- 1 inch NORMALLY OPEN 110V 120V AC VAC Brass Solenoid Valve NPT
- Voltage :110-120 VAC
- Pipe Size :1" NPT
- Operation Mode: N/O (normally open)
- Media: Water, air, natural gas, propane, butane, petroleum oil, mineral oils, diesel, low viscosity fluid, etc. (Do NOT use with gasoline)
| Size | 1 Inch |
|---|---|
| Brand Name | CARBEX |
| Unit Count | 1 Count |
| Valve Type | Diaphragm Valve |
| Item Weight | 0.08 Kilograms |
| Thread Size | 1 inch |
| Thread Type | NPT |
| Manufacturer | CARBEX |
| Model Number | 47031c78-e178-4de6-bfb6-26cf27a04e67 |
| Material Type | Brass |
| Connector Type | Wired |
| Exterior Finish | Brass |
| Number of Ports | 2 |
| Inlet Connection Type | National Pipe Tapered |
| Outlet Connection Size | 1 Inches |
| Outlet Connection Type | FNPT |
