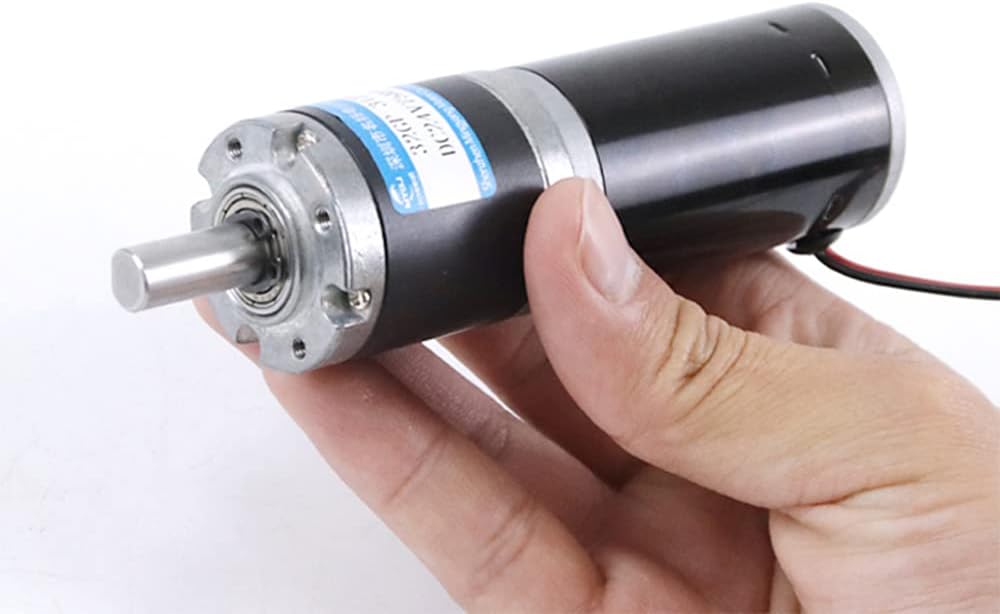

DC Planetary Geared Motor 12V 24V DC Miniature Motor Planetary Gearbox Large Torque DC Electric Motor with Bracket (24V 8MM,98rpm)

Note: 1. The motor is not allowed to exceed the limit load, maybe is intended to be blocked. 2. Please select the power supply reasonably according to the input voltage of the product: DC: DC 12V/24V). 3. When load torque = rated torque, load speed = rated speed If the actual load exceeds the rated load, the actual output speed will be reduced accordingly. 4. It is recommended to refer to the rated torque parameters for selection. 5. When approaching/exceeding the limit load torque, it may cause internal damage. 6. Lowering the motor speed will reduce the output torque. 7. There will be about 50d6 noise in the motor operation, and there will be slight changes with the speed/load change. *This motor cannot be overloaded or stalled, please choose reasonably *Appropriate specification (reduction ratio determines output torque) to use. (Calculation required torque = driving radius cm * mass kg driven by rotation) *Overload/locked rotor use will cause the motor to burn out or the gear set *(A:10kg, torque required=A*R=10*1=10kg.cm) crack. If the product is damaged due to illegal use, it will not be available *(B: 10kg, torque required=A*R=10*10=100kg.cm)

• All-metal planetary gear reducer, D-type output shaft 6/8mm, the planetary gear structure is more compact, the force is more uniform, the bearing capacity, the working reliability, the working efficiency are high, and the "small size, high torque, high stability" is realized , long life" features.
• Thickened DC motor carbon brushes, using electrochemical graphite carbon brushes, have good lubrication, electrical conductivity, wear resistance, excellent commutation performance, and long service life.
• Permanent magnet magnetic tile pure copper wire winding, motor power core is durable, strong and stable magnetic, stable performance.
• The motor speed fluctuation range is small, the use is reliable, and the energy consumption is small.
• The pure copper winding rotor can achieve a stronger magnetic field under a limited current and generate a stronger torque.
