DM103 LCR Meter Tweezer - 0.5% High Accuracy 10KHz Mini Smart SMD Tester with 400mAh Rechargeable Battery Type-C Connection for SMD ESR Resistor Capacitor Inductance Diode Voltage Frequency Test
4.0 (18 items)
Limited Time SaleUntil the end
18
18
48
US$21.59 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$14.40
Product details
| Management number | 211732028 | Release Date | 2026/04/04 | List Price | US$14.40 | Model Number | 211732028 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

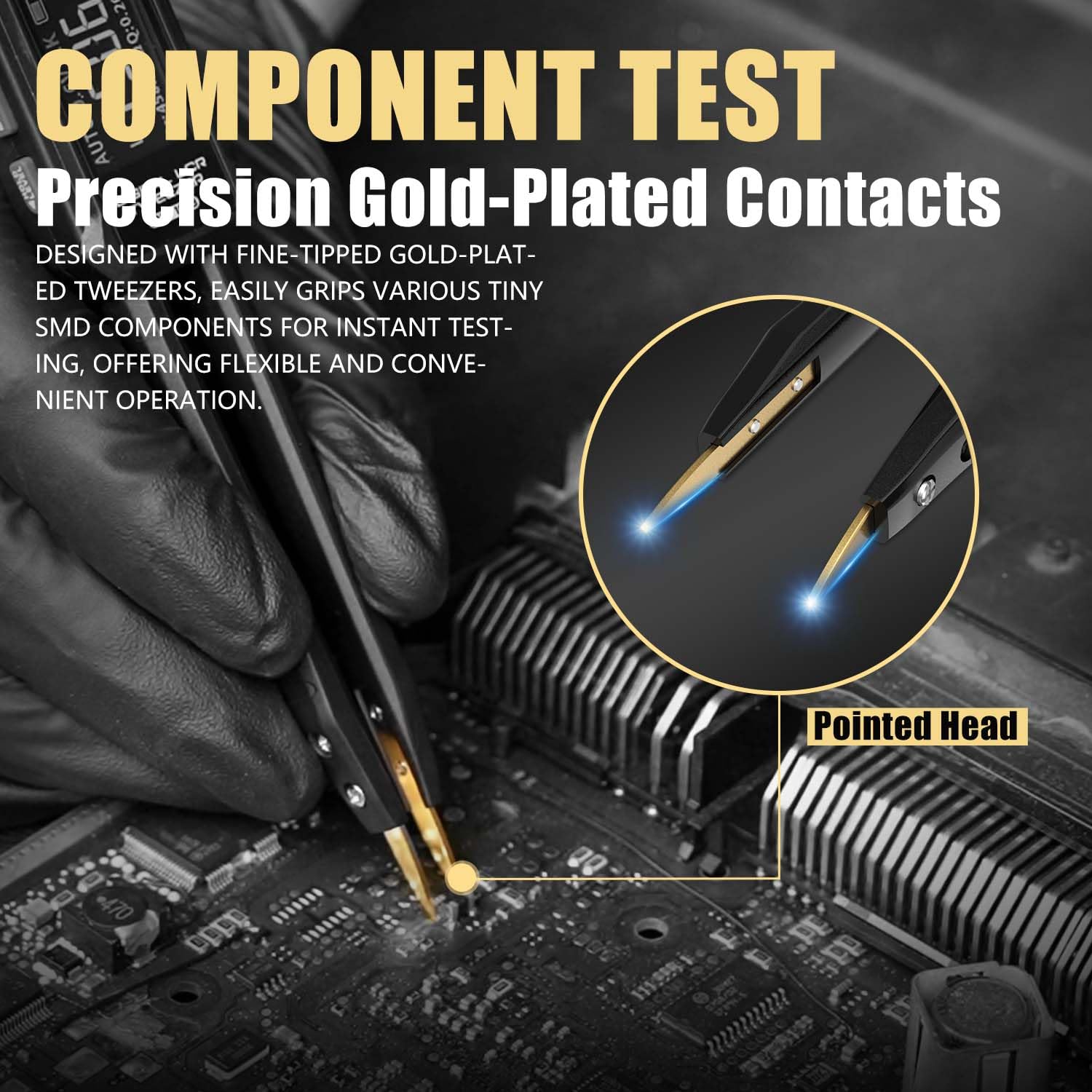

- 【Professional 10KHz LCR Tweezer Meter】Experience professional-grade accuracy in a portable tweezer design. This high-precision LCR tweezer features 3 test frequencies (100Hz, 1KHz, 10KHz) and 0.5% measurement accuracy, enabling superior component testing across an ultra-wide range: Resistance (10mΩ-10MΩ), Capacitance (1pF-20mF), Inductance (1μH-60H),Diodes: On voltage 0.6V. It’s the ultimate portable tool for SMD component testing, circuit repair and electronic maintenance, performing as a capacitor tester, inductance meter, resistor meter and diode/continuity tester with exceptional reliability
- 【6 Professional Test Modes】This LCR tweezer provides 6 dedicated professional test modes to meet diverse electronic measurement needs: Auto mode for quick one‑touch detection, Inductance (1μH‑60H), Capacitance (1pF‑20mF), Resistance (10mΩ‑10MΩ), Diode test, and Continuity test. NOTE:When measuring low resistors, ensure full and clean contact with the component surface, as surface oxidation or poor contact may reduce measurement accuracy. For capacitor testing, always fully discharge the capacitor before measurement to prevent residual charge from damaging the instrument and ensure safe, reliable operation
- 【Diode & Continuity Measurement Notes】Diode testing follows the polarity symbol shown on the OLED display; align the tweezer tips with the actual diode to identify forward/reverse polarity correctly. The diode turn on voltage reference range is 0.1V–0.6V for comparison only, and “OL” will appear if out of range; for high‑precision diode testing, a dedicated professional tester is recommended. Continuity results in live circuits are for reference only, affected by parallel capacitance, and should not be used as the final standard for judging open/short circuit status.
- 【User-Friendly & Clear OLED Display】Intuitive and easy to operate with both left-hand and right-hand mode for flexible use. Equipped with a clear 0.6-inch HD OLED display and adjustable screen brightness for easy reading even in different lighting environments. Built-in 400mAh rechargeable battery supports convenient Type-C charging, while the auto power-off function effectively extends battery life
- 【Compact Portable & Complete Accessory Kit】This all-in-one LCR tweezer tester comes with a full set of practical accessories, including replaceable tweezer probes, and convenient connection cables for versatile testing needs. The plug-and-play design allows quick, tool-free replacement of test probes, efficiently switching between different components and measurement scenarios. Compact and lightweight for easy portability, the complete set also includes a dedicated storage pouch to keep the tester and all accessories neatly organized, ideal for on-the-go repairs, field maintenance, DIY projects, and daily electronic component testing
| Color | Black&Yellow |
|---|---|
| Brand Name | LINXINO |
| Style Name | DM103 |
| Manufacturer | LINXINO |
| Power Source | Corded Electric |
| Included Components | DM103 Digital LCR Tweezer |
