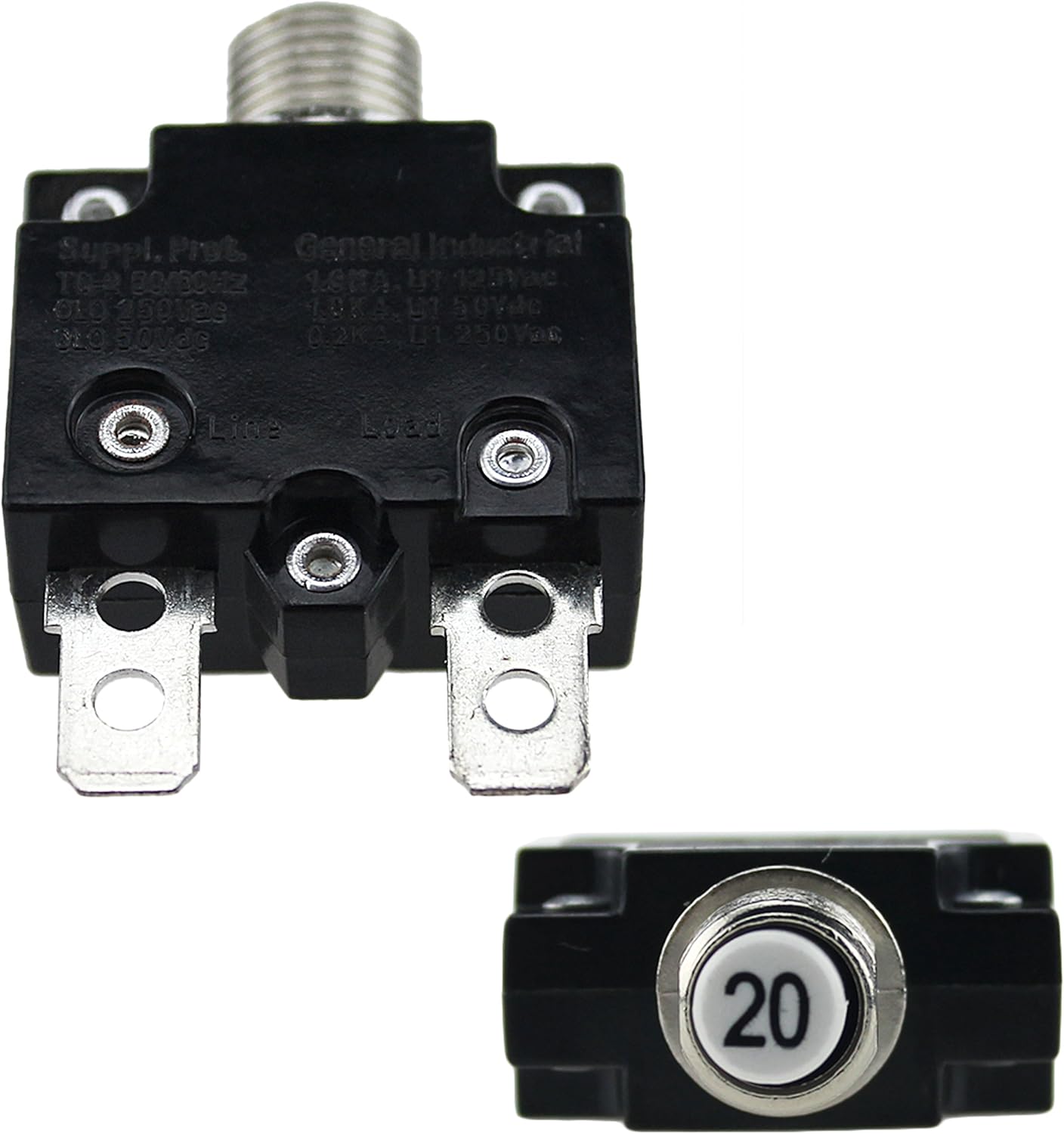

IZTOSS 5PCS 20Amp Circuit Breakers Push Button Manual Reset with Quick Connect Terminals and Waterproof Button Transparent Cap

flash sale iconLimited Time Sale
Until the end
10
44
33

US$5.39 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$3.60
quantity

Product details

Management number 218804656 Release Date 2026/05/03 List Price US$3.60 Model Number 218804656
Category

Description: For operation up to 50 volts DC or 250 volts AC. Not designed for push on / push off manual switch operation, but the button pops out at overload and is reset by pushing back in. This replacement circuit reset breaker can be used in a variety of applications requiring protection. With a plastic housing, and the included waterproof button cover, you can use this breaker in areas where it may be exposed to moisture without worry. We manufacturer this breaker with Quick Connect terminals so you can get the job done quicker. Specifications: Quick connect terminals Switch type: Push-button reset Includes waterproof button cover Package Includes: 5 x Thermal Circuit Breaker 5 x Waterproof button cover

  • High and low temperature resistance .Suitable for -40 ℃ ~ 85 ℃. TUV ROHS approved (Ignition Protected)
  • Installed in 3/8 inch (10 mm) round hole fit for operation up to 50 volts DC or 250 volts AC.
  • One-key reset function with white manual reset button. When overload , white button pop up, interrupt the circuit, manually push the reset.
  • Compact design and white button with waterproof transparent cap provide high-strength circuit protection
  • Widely suitable For Automotive/Industrial/Marine And Many Other applications.
Color 20 Amp
Brand Name IZTOSS
Part Number AP2562-Z
Switch Type Push Button
Contact Type Normally Closed
Manufacturer IZTOSS
Actuator Type Push Button
Material Type Plastic
Mounting Type Snap In Mount
Connector Type Quick Connect
Current Rating 20 Amps
Controller Type Push Button
Operating Voltage 50 Volts
Connectivity Protocol X-10
